波紋補償器CASE SHOW

DN400消防系統波紋膨脹節

服務內容:DN400消防系統波紋膨脹節

簡介:DN400消防系統波紋膨脹節 Bellows expansion joint in fire fighting system 上海淞江減震器集團有限公司官方網站為您介紹:DN400消防系統波紋膨脹節信息,淞江集團生產各種波紋補償器、波紋膨脹節等產品,......

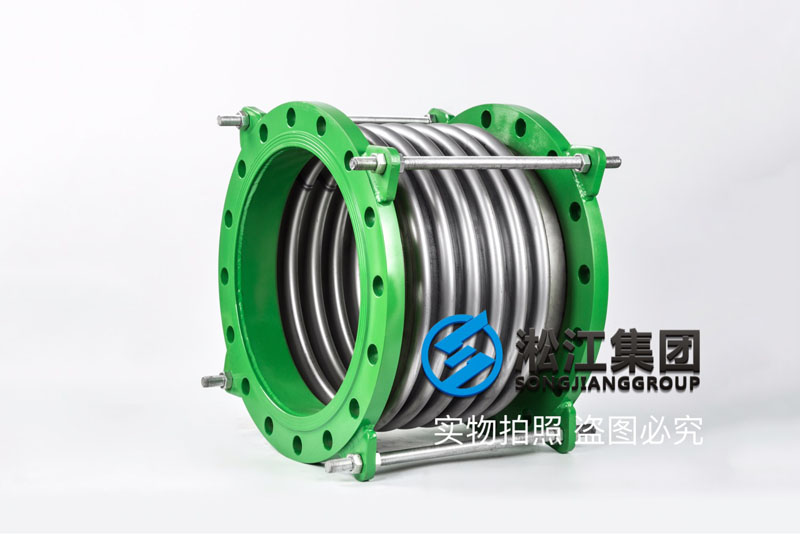

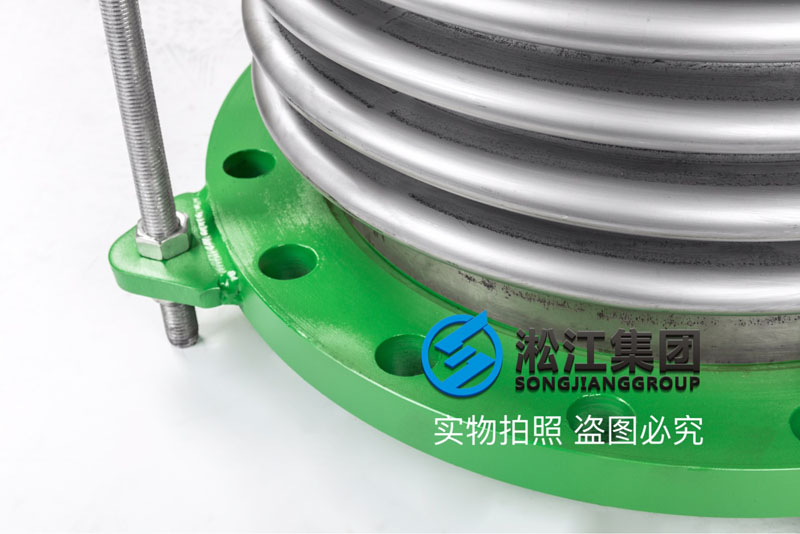

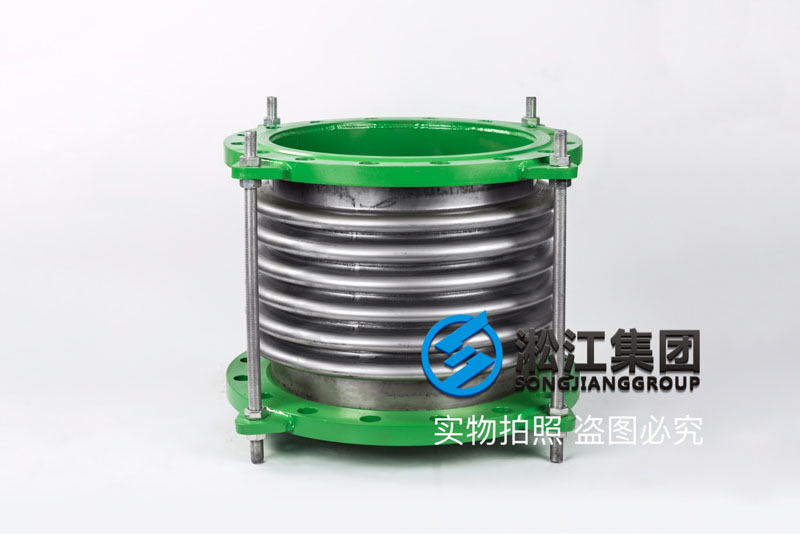

DN400消防系統波紋膨脹節
Bellows expansion joint in fire fighting system

上海淞江減震器集團有限公司官方網站為您介紹:DN400消防系統波紋膨脹節信息,淞江集團生產各種波紋補償器、波紋膨脹節等產品,主要對管線進行軸向補償和降噪的作用,質量穩定可靠。
Shanghai Songjiang shock absorber Group Co., Ltd. official website introduces you: DN400 fire system bellows expansion joint information, Songjiang group specializing in the production of various corrugated compensator, bellows expansion joint and other products, mainly plays the role of shock absorption and noise reduction, quality is stable and reliable.

DN400消防系統波紋膨脹節
DN400消防系統波紋膨脹節
DN400消防系統波紋膨脹節
DN400消防系統波紋膨脹節
DN400消防系統波紋膨脹節
名稱:不銹鋼波紋膨脹節
口徑:DN400mm
壓力:PN16
波數:6波
厚度:2mm
長度:425mm
伸縮量:60mm
波紋材質:不銹鋼304
法蘭材質:碳鋼(鍛打)
適用于:管道管線中
作用:吸收管道熱脹冷縮的軸向位移
缺點:請?jiān)诠艿肋M(jìn)水口加裝有效去除氯離子裝置(氯離子含量不超過25mg/L),避免水氯離子含量超標,產生針孔腐蝕;
取代者:橡膠接頭是用在設備進出口的,可以補償軸向和橫向位移,減震效果是最好的。并且不受管道內部介質的腐蝕。
品牌:淞江集團

制造商:上海淞江減震器集團有限公司

Name: stainless steel corrugated expansion joint
Caliber: DN400mm
Pressure: PN16
Wave number: 6 wave
Thickness: 2mm
Length: 425mm
Scalability: 60mm
Corrugated material: stainless steel 304
Flange material: carbon steel (forging)
Brand: Songjiang group
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

DN400消防系統波紋膨脹節屬于一種補償元件。利用其工作主體波紋管的有效伸縮變形,以吸收管線、導管、容器等由熱脹冷縮等原因而產生的尺寸變化,或補償管線、導管、容器等的軸向位移。也可用于降噪減振。
The ripple expansion joint of the DN400 fire system belongs to a compensation element. The effective expansion and deformation of bellows should be utilized to absorb the size changes caused by thermal expansion, shrinkage and other reasons, or to compensate for axial, lateral and angular displacement of pipelines, pipes and containers. It can also be used for noise reduction and vibration reduction.

以上DN400消防系統波紋膨脹節信息來源于上海淞江減震器集團有限公司官方網站,如需了解更多請點擊:高品質金屬軟管
The above DN400 fire system ripple expansion joint information comes from the official website of Shanghai Songjiang shock absorber Group Co., Ltd.

了解該產品參數信息請點擊:【樣冊P93】BGF型 不銹鋼波紋補償器

相關鏈接:【三亞珠江儷豪二期項目】波紋補償器合同
